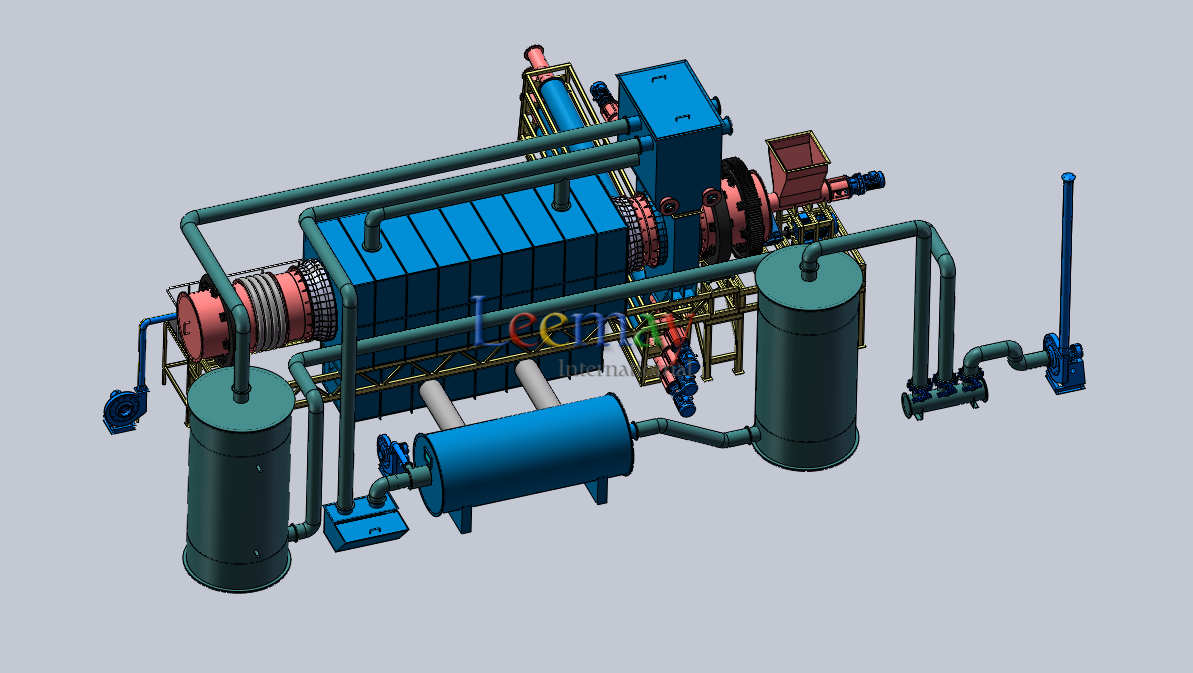

Wood Sawdust Charcoal Carbonization Furnace
Details
Description
Wood Sawdust Charcoal Carbonization Furnace is one continuous working type pyrolysis furnace, which can to turn raw materials into high-quality charcoal carbon in a high-temperature and oxygen-shortage environment.
The finished sawdust charcoal has quite a wide range of uses in various kinds of filed, like BBQ, activated carbon processing, soil conditioner and fertilizer, shisha charcoal production, etc.
Animation
Working Principle
The wood sawdusts are carbonized and pyrolyzed in a high-temperature and oxygen-limited environment, the syngas generated during the whole production is recycled into fuel to supply heat for the carbonization furnace.
Models & Specifications
Model
LMGL-Ⅰ
LMGL-Ⅱ
LMGL-Ⅲ
Furnace Size/mm
800×1200
1000×1600
1200×2000
Capacity/kg/h
300-400
500-600
800-1000
Gas Burner/pc
6
6
6
Main Stove/pc
1
1
1
Subsidiary Stove/pc
1
1
1
Fan Power/kw
7.5
11
15
Small Fan Power/kw
3
3
3
Transmission Motor/kw
4
5.5
7.5
Feeder Power/kw
4
4
4
Discharger Power/kw
3
3
3
Furnace Inside Temp./℃
350-850
350-850
350-850
Flue Pipe Temp./℃
500-800
500-800
500-800
The sawdust charcoal carbonization furnace can be specially designed and produced according to client's need. Just feel free to contact us for the solution if you have new inquires.
