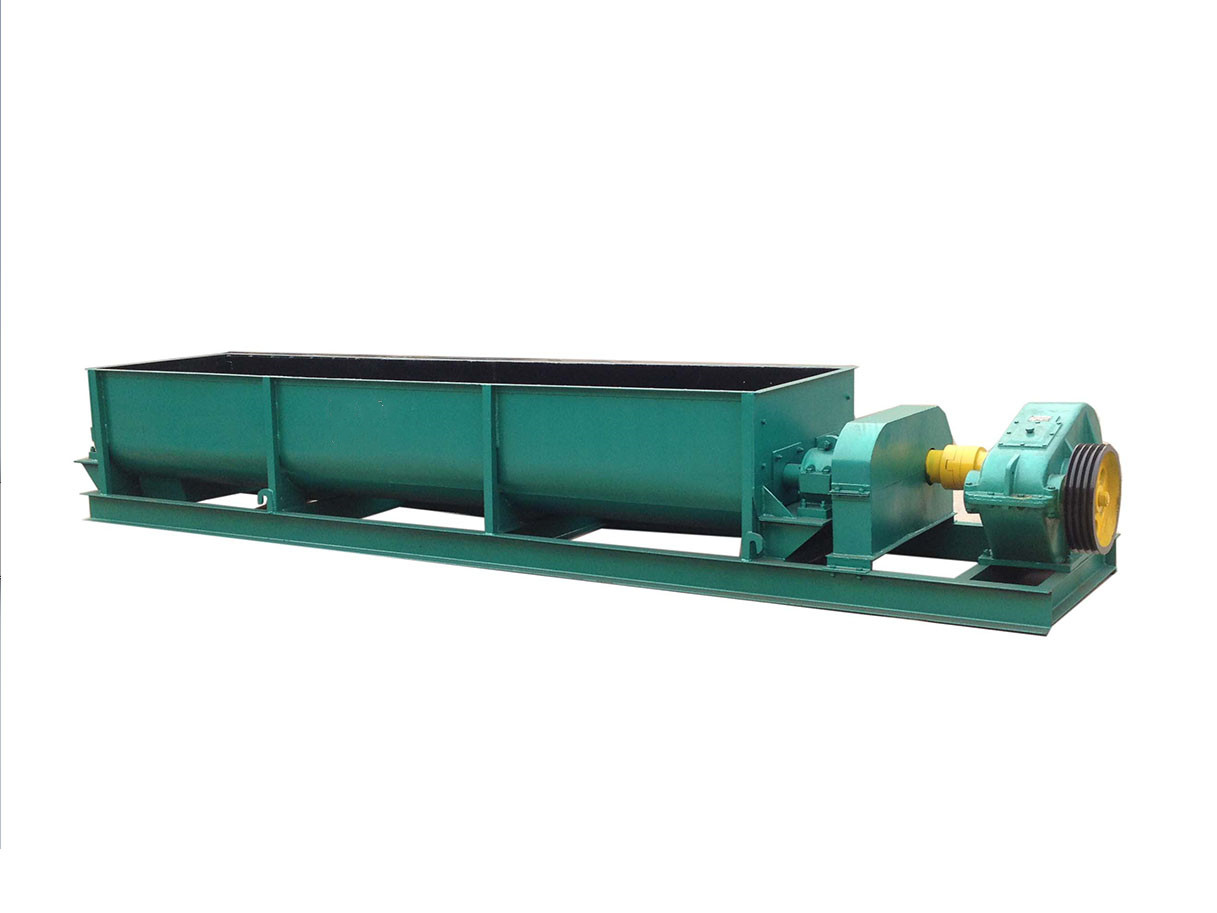

Double Shaft Mixer

Description

The double shaft mixer has three functions of mixing, transportation, and humidification. It is mainly composed of shell, screw shaft, driving device, cover plate, chain cover, and other components. The opposite blades in the double shaft mixer move towards each other. Because the blades are in a spiral direction, the materials move forward during the humidification process of the mixer.

Features

1. Special design gearbox, to provide with correct speed ratio, to match with the electric motor.
2. Adjustable mixing speed. The Double-shaft Mixer is equipped with an inverter, it is very convenient to adjust mixing speed.
3. The mixing room, shafts, and paddles are all made from wear-resisting steel, which makes the mixer have a longer lifespan.
4. Environmental friendly. The wheel mixer is equipped with a steel cover on the top, and an inlet for raw materials. No dust when running.
5. High-efficiency. The Double-shaft Mixer is a continuous type and can mix raw materials with additives and water efficiently.

Models & Specifications

Model	Power (KW)	Capacity(T/H)	Width (MM)	Size (MM)	Weigh(T)
LMSZ-2500	7.5/11	8-10	600	3500*1000*750	1.8
LMSZ-3000	15/18.5	10-15	800	4000*1000*750	2.2
LMSZ-3500	11-22	12-20	800	4500*1000*750	2.4
LMSZ-4000	15	15-25	800	5000*1000*850	3
