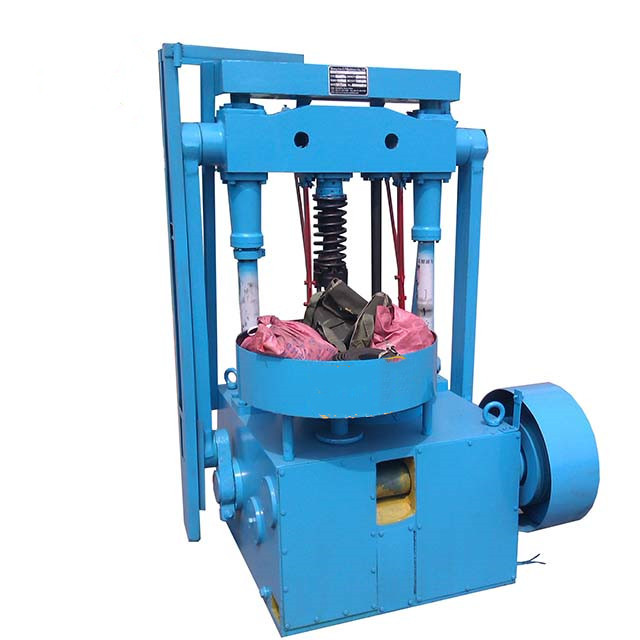

Hexagonal Cylinder Charcoal Briquette Punch Press
Details
Description

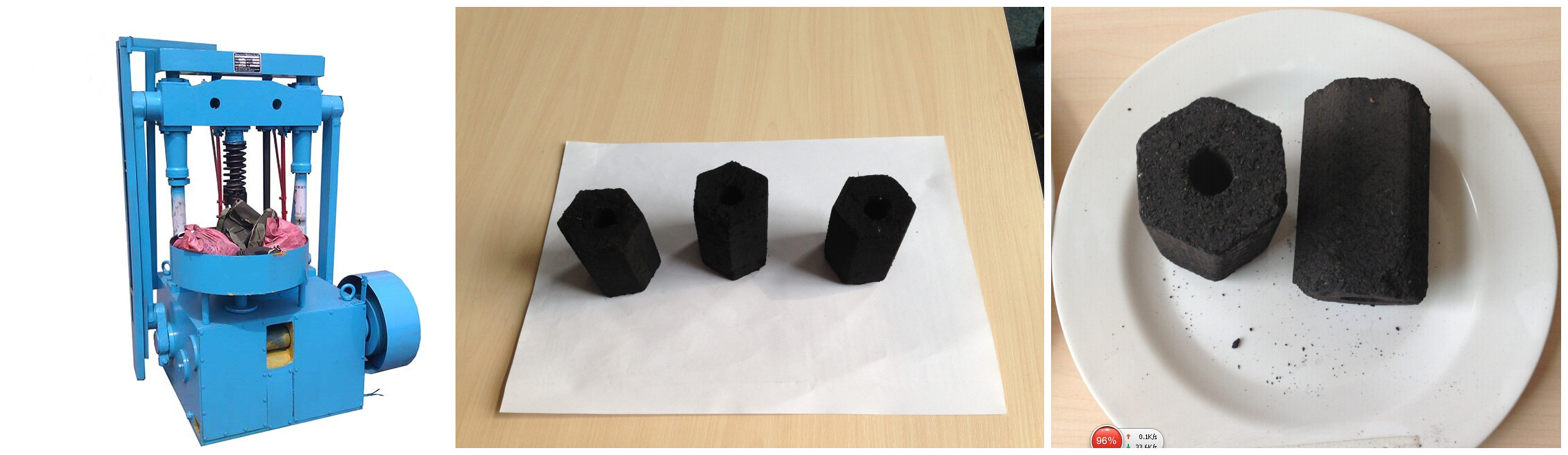

The punch briquette press is one of the charcoal and coal forming processing equipment. Being assembled the different molds, people can get the round, cubic and hexagonal cylinder shape briquettes. In charcoal production field, hexagonal cyclinder charcoal briquettes are the most popular.
It is not only applicable to single machine processing, but also to the large-scale briquetting production line. The application materials can be coal, charcoal, biomass and refractory materials, etc.
The whole set machine consists of moulding part, transmission system, feeding system and conveying part. All the parts are well coordinated and are running smoothly and durably.
Features
1. High profit and low cost in raw material.
2. Increase the net calorific value per unit volume after briquetting
3. Energy saving, friendly-environment, low-consumption.
4. Be easy to transport and store.
Models & Specifications
No.
Model
Motor power kw
Briquette size
Capacity times/m
Finished Briquettes/Min
1
LMMQ-01
7.5
<125mm
45
3 pcs, Dia.5cm, Height 7cm
11
125-137mm
45
2
LMMQ-02
7.5
<125mm
45
4 pcs, Dia.5cm, Height 7cm
11
125-157mm
45
3
LMMQ-03
6-11
<145mm
45
4 pcs, Dia.5cm, Height 8-12cm, double feeding
4
LMMQ-04
6-22
<145mm
45
4 pcs, Dia.5cm, Height 11-14cm, double feeding
The hexagonal cylinder charcoal briquette punch press can be specially designed and produced according to client's need. Just feel free to contact us for the solution if you have new inquires.
